1 Introduction

1.1 Overview

Cardiovascular diseases (CVDs) are the number 1 cause of death globally, taking an estimated 17.9 million lives each year, which accounts for 31% of all deaths worldwide. Four out of 5CVD deaths are due to heart attacks and strokes, and one-third of these deaths occur prematurely in people under 70 years of age. This makes it important for health facilities to be able to predict occurrences of heart diseases in order to make plans for early treatment (Assmann et al. 2005). Heart failure is a common event caused by CVDs and this dataset contains 11 features that can be used to predict a possible heart disease.

People with cardiovascular disease or who are at high cardiovascular risk (due to the presence of one or more risk factors such as hypertension, diabetes, hyperlipidaemia or already established disease) need early detection and management wherein a machine learning model can be of great help.

1.2 About the Data

This dataset contains 918 observations with 12 features. The data dictionary is as follows:

  • output: target variable (1=has heart attack, 0= has no heart attack)
  • age: Age of the patient
  • sex: Sex of the patient (1= male, 0= female).
  • cp: chest pain type (0=typical angina, 1=atypical angina, 2=non-anginal and 3=asymptomatic)
  • trtbps: resting blood pressure (in mm Hg)
  • chol: cholestoral in mg/dl fetched via BMI sensor
  • fbs: fasting blood sugar (>120mg/dl=1, <= 120mg/dl=0).
  • restecg: resting electrocardiographic results( 0=normal, 1=having ST-T wave abnormality, 2=showing probable or definate left ventricular hypertrophy by Este’s criteria.)
  • thalach: Maximum heart rate achieved.
  • exng: exercise induced angina; 1=yes, 0=no.
  • oldpeak: ST depression.
  • slp = slope of peak exercise; 0=upsloping, 1=flat, 2=downsloping.

2 Data Exploration

2.1 loading Relevant packages

#Import relevant packages

library(tidyverse)
library(janitor)
#library(readr)
library(plotly)
library(knitr)

2.2 loading Data Set

heart_disease <- read_csv('https://raw.githubusercontent.com/reinpmomz/Predicting-heart-disease/main/data/heart.csv')%>%
  clean_names()


#View(heart_disease)
head(heart_disease)
## # A tibble: 6 x 12
##     age   sex    cp trtbps  chol   fbs restecg thalach  exng oldpeak   slp
##   <dbl> <dbl> <dbl>  <dbl> <dbl> <dbl>   <dbl>   <dbl> <dbl>   <dbl> <dbl>
## 1    40     1     1    140   289     0       0     172     0     0       0
## 2    49     0     2    160   180     0       0     156     0     1       1
## 3    37     1     1    130   283     0       1      98     0     0       0
## 4    48     0     3    138   214     0       0     108     1     1.5     1
## 5    54     1     2    150   195     0       0     122     0     0       0
## 6    39     1     2    120   339     0       0     170     0     0       0
## # ... with 1 more variable: output <dbl>
##checking the data structure

str(heart_disease)
## spc_tbl_ [918 x 12] (S3: spec_tbl_df/tbl_df/tbl/data.frame)
##  $ age    : num [1:918] 40 49 37 48 54 39 45 54 37 48 ...
##  $ sex    : num [1:918] 1 0 1 0 1 1 0 1 1 0 ...
##  $ cp     : num [1:918] 1 2 1 3 2 2 1 1 3 1 ...
##  $ trtbps : num [1:918] 140 160 130 138 150 120 130 110 140 120 ...
##  $ chol   : num [1:918] 289 180 283 214 195 339 237 208 207 284 ...
##  $ fbs    : num [1:918] 0 0 0 0 0 0 0 0 0 0 ...
##  $ restecg: num [1:918] 0 0 1 0 0 0 0 0 0 0 ...
##  $ thalach: num [1:918] 172 156 98 108 122 170 170 142 130 120 ...
##  $ exng   : num [1:918] 0 0 0 1 0 0 0 0 1 0 ...
##  $ oldpeak: num [1:918] 0 1 0 1.5 0 0 0 0 1.5 0 ...
##  $ slp    : num [1:918] 0 1 0 1 0 0 0 0 1 0 ...
##  $ output : num [1:918] 0 1 0 1 0 0 0 0 1 0 ...
##  - attr(*, "spec")=
##   .. cols(
##   ..   age = col_double(),
##   ..   sex = col_double(),
##   ..   cp = col_double(),
##   ..   trtbps = col_double(),
##   ..   chol = col_double(),
##   ..   fbs = col_double(),
##   ..   restecg = col_double(),
##   ..   thalach = col_double(),
##   ..   exng = col_double(),
##   ..   oldpeak = col_double(),
##   ..   slp = col_double(),
##   ..   output = col_double()
##   .. )
##  - attr(*, "problems")=<externalptr>

From the output on the data structure, all of the data has been read as numeric values(‘double’ value or a decimal type with at least two decimal places) but some should be converted to factors since they are categorical.

2.3 Converting into factors

heart_disease_final <- heart_disease%>%
  mutate(output= factor(output, levels = c(0,1),
                                      labels = c("No heart attack", "Has Heart attack")))%>%
  mutate(sex= factor(sex, levels = c(0,1),
                                      labels = c("Female", "Male")))%>%
  mutate(cp= factor(cp, levels = c(0,1,2,3),
          labels = c("typical angina", "atypical angina", "non-anginal", "asymptomatic")))%>%
  mutate(fbs= factor(fbs, levels = c(0,1),
                                      labels = c("<= 120mg/dl", ">120mg/dl")))%>%
  mutate(restecg= factor(restecg, levels = c(0,1,2),
          labels = c("normal", "having ST_T \n abnormality", "showing probable or \n definate left\n ventricular hypertrophy")))%>%
  mutate(exng= factor(exng, levels = c(0,1),
                                      labels = c("No", "Yes")))%>%
  mutate(slp= factor(slp, levels = c(0,1,2),
          labels = c("upsloping", "flat", "downsloping")))%>%
  filter(trtbps>0)%>%
  filter(chol>0)
var.labels = c(
  age = "Age of the patient",
  sex = "Sex of the patient",
  cp = "Chest pain type",
  trtbps = "Resting blood pressure (in mm Hg)",
  chol = "Cholestoral in mg/dl",
  fbs = "Fasting blood sugar",
  restecg = "Resting electrocardiographic results",
  thalach = "Maximum heart rate achieved",
  exng = "Exercise induced angina",
  oldpeak = "ST depression",
  slp = "Slope of peak exercise",
  output = "Heart disease")

heart_disease_final <- labelled::set_variable_labels(heart_disease_final, .labels = var.labels)

str(heart_disease_final)
## tibble [746 x 12] (S3: tbl_df/tbl/data.frame)
##  $ age    : num [1:746] 40 49 37 48 54 39 45 54 37 48 ...
##   ..- attr(*, "label")= chr "Age of the patient"
##  $ sex    : Factor w/ 2 levels "Female","Male": 2 1 2 1 2 2 1 2 2 1 ...
##   ..- attr(*, "label")= chr "Sex of the patient"
##  $ cp     : Factor w/ 4 levels "typical angina",..: 2 3 2 4 3 3 2 2 4 2 ...
##   ..- attr(*, "label")= chr "Chest pain type"
##  $ trtbps : num [1:746] 140 160 130 138 150 120 130 110 140 120 ...
##   ..- attr(*, "label")= chr "Resting blood pressure (in mm Hg)"
##  $ chol   : num [1:746] 289 180 283 214 195 339 237 208 207 284 ...
##   ..- attr(*, "label")= chr "Cholestoral in mg/dl"
##  $ fbs    : Factor w/ 2 levels "<= 120mg/dl",..: 1 1 1 1 1 1 1 1 1 1 ...
##   ..- attr(*, "label")= chr "Fasting blood sugar"
##  $ restecg: Factor w/ 3 levels "normal","having ST_T \n abnormality",..: 1 1 2 1 1 1 1 1 1 1 ...
##   ..- attr(*, "label")= chr "Resting electrocardiographic results"
##  $ thalach: num [1:746] 172 156 98 108 122 170 170 142 130 120 ...
##   ..- attr(*, "label")= chr "Maximum heart rate achieved"
##  $ exng   : Factor w/ 2 levels "No","Yes": 1 1 1 2 1 1 1 1 2 1 ...
##   ..- attr(*, "label")= chr "Exercise induced angina"
##  $ oldpeak: num [1:746] 0 1 0 1.5 0 0 0 0 1.5 0 ...
##   ..- attr(*, "label")= chr "ST depression"
##  $ slp    : Factor w/ 3 levels "upsloping","flat",..: 1 2 1 2 1 1 1 1 2 1 ...
##   ..- attr(*, "label")= chr "Slope of peak exercise"
##  $ output : Factor w/ 2 levels "No heart attack",..: 1 2 1 2 1 1 1 1 2 1 ...
##   ..- attr(*, "label")= chr "Heart disease"

The categorial columns are sex, cp, fbs, restecg, exng, slp while continuous columns are age, trtbps, chol, thalach, oldpeak and target variable is output

2.4 checking missing values

mean(is.na(heart_disease_final))
## [1] 0
#which(is.na(heart_disease_final))

#which(!complete.cases(heart_disease_final))

There were no missing values in our data set.

3 Exploratory data analysis

Exploring data is vital in giving a clue of the expected relationship between the dependent variable and the exploratory variables (Zuur et al. 2010).

3.1 Univariate analysis

This is analysis of one variable to enable us understand the distribution of values for a single variable.

3.1.1 Descriptives Frequency table

library(gtsummary)
library(flextable)

set_gtsummary_theme(list(
  "tbl_summary-fn:percent_fun" = function(x) style_percent(x, digits = 1),
  "tbl_summary-str:categorical_stat" = "{n} ({p}%)"
))
# Setting `Compact` theme
theme_gtsummary_compact()
# make dataset with variables to summarize


tbl_summary(heart_disease_final,
                      type = list(
                        all_dichotomous() ~ "categorical",
                         all_continuous() ~ "continuous2")
                      , statistic = all_continuous() ~ c(
                                     "{mean} ({sd})",
                                     "{median} ({p25}, {p75})",
                                     "{min}, {max}")
                      , digits = all_continuous() ~ 2
                      , missing = "always" # don't list missing data separately
                      ,missing_text = "Missing"
                      ) %>%
  modify_header(label = "**Descriptives**") %>% # update the column header
  bold_labels() %>%
  italicize_levels()%>%
  add_n() # add column with total number of non-missing observations
Descriptives N N = 7461
Age of the patient 746
    Mean (SD) 52.88 (9.51)
    Median (IQR) 54.00 (46.00, 59.00)
    Range 28.00, 77.00
    Missing 0
Sex of the patient 746
    Female 182 (24.4%)
    Male 564 (75.6%)
    Missing 0
Chest pain type 746
    typical angina 41 (5.50%)
    atypical angina 166 (22.3%)
    non-anginal 169 (22.7%)
    asymptomatic 370 (49.6%)
    Missing 0
Resting blood pressure (in mm Hg) 746
    Mean (SD) 133.02 (17.28)
    Median (IQR) 130.00 (120.00, 140.00)
    Range 92.00, 200.00
    Missing 0
Cholestoral in mg/dl 746
    Mean (SD) 244.64 (59.15)
    Median (IQR) 237.00 (207.25, 275.00)
    Range 85.00, 603.00
    Missing 0
Fasting blood sugar 746
    <= 120mg/dl 621 (83.2%)
    >120mg/dl 125 (16.8%)
    Missing 0
Resting electrocardiographic results 746
    normal 445 (59.7%)
    having ST_T abnormality 125 (16.8%)
    showing probable or definate left ventricular hypertrophy 176 (23.6%)
    Missing 0
Maximum heart rate achieved 746
    Mean (SD) 140.23 (24.52)
    Median (IQR) 140.00 (122.00, 160.00)
    Range 69.00, 202.00
    Missing 0
Exercise induced angina 746
    No 459 (61.5%)
    Yes 287 (38.5%)
    Missing 0
ST depression 746
    Mean (SD) 0.90 (1.07)
    Median (IQR) 0.50 (0.00, 1.50)
    Range -0.10, 6.20
    Missing 0
Slope of peak exercise 746
    upsloping 349 (46.8%)
    flat 354 (47.5%)
    downsloping 43 (5.76%)
    Missing 0
Heart disease 746
    No heart attack 390 (52.3%)
    Has Heart attack 356 (47.7%)
    Missing 0
1 n (%)

3.1.2 Visualization

library(ggpubr)

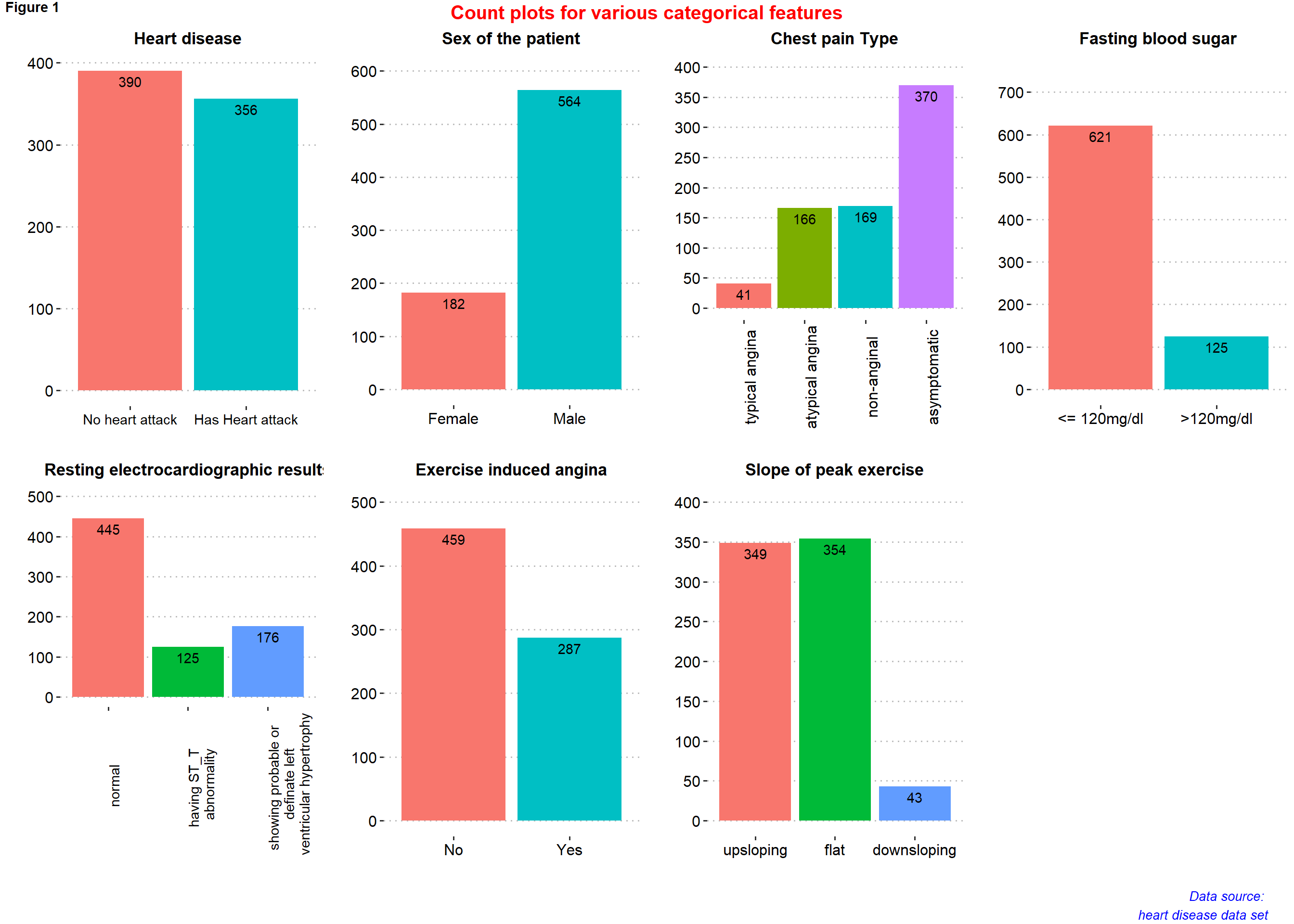

p1 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = output), show.legend = FALSE)+
  labs(x="",y="", title = "Heart disease")+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  #guides(fill = FALSE)+
  theme_pubclean()+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        #legend.position = "none",
        axis.text.y = element_text(color="black",size=12),
        axis.text.x = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p2 <- ggplot(heart_disease_final, aes(x=sex))+
  geom_bar(aes(fill = sex), show.legend = FALSE)+
  labs(x="",y="", title = "Sex of the patient")+
  scale_y_continuous(breaks = seq(0, 600, by = 100), limits = c(0, 600))+
  theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p3 <- ggplot(heart_disease_final, aes(x=cp))+
  geom_bar(aes(fill = cp), show.legend = FALSE)+
  labs(x="",y="", title = "Chest pain Type")+
  scale_y_continuous(breaks = seq(0, 400, by = 50), limits = c(0, 400))+
  theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text.y = element_text(color="black",size=12),
        axis.text.x = element_text(color="black",size=12, angle = 90),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())


p4 <- ggplot(heart_disease_final, aes(x=fbs))+
  geom_bar(aes(fill = fbs), show.legend = FALSE)+
  labs(x="",y="", title = "Fasting blood sugar")+
  scale_y_continuous(breaks = seq(0, 750, by = 100), limits = c(0, 750))+
 theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title= element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p5 <- ggplot(heart_disease_final, aes(x=restecg))+
  geom_bar(aes(fill = restecg), show.legend = FALSE)+
  labs(x="",y="", title = "Resting electrocardiographic results")+
  scale_y_continuous(breaks = seq(0, 500, by = 100), limits = c(0, 500))+
  theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text.y = element_text(color="black",size=12),
        axis.text.x = element_text(color="black",size=11, angle = 90),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p6 <- ggplot(heart_disease_final, aes(x=exng))+
  geom_bar(aes(fill = exng), show.legend = FALSE)+
  labs(x="",y="", title = "Exercise induced angina")+
  scale_y_continuous(breaks = seq(0, 500, by = 100), limits = c(0, 500))+
  theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())


p7 <- ggplot(heart_disease_final, aes(x=slp))+
  geom_bar(aes(fill = slp), show.legend = FALSE)+
  labs(x="",y="", title = "Slope of peak exercise")+
  scale_y_continuous(breaks = seq(0, 400, by = 50), limits = c(0, 400))+
  theme_pubclean()+
  geom_text(aes(label = ..count..), stat = "count", vjust = 1.5, colour = "black")+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())


figure1 <- ggarrange(p1, p2, p3, p4, p5, p6, p7,
          #labels = c("A", "B", "C","D", "E", "F", "G"),
          ncol = 4, nrow = 2)

annotate_figure(figure1,
                top = text_grob("Count plots for various categorical features",
                                color = "red", face = "bold", size = 15),
                bottom = text_grob("Data source: \n heart disease data set", color = "blue",
                                   hjust = 1, x = 0.98, face = "italic", size = 10),
                #left = text_grob("Figure arranged using ggpubr", color = "green", rot = 90),
                #right = "",
                fig.lab = "Figure 1", fig.lab.face = "bold"
                )

p8 <- ggplot(heart_disease_final, aes(x=age)) +
  geom_histogram(color="black", fill="white")+
  geom_vline(aes(xintercept=mean(age)),
            color="blue", linetype="dashed", size=1)+
  scale_y_continuous(breaks = seq(0, 85, by = 10), limits = c(0, 80))+
  scale_x_continuous(n.breaks = 10)+
  labs(x="age",y="count", title = "Age of the patient")+
  theme(axis.title = element_text(color="black",size=12),
        axis.text = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())

p9 <-ggplot(heart_disease_final, aes(x=trtbps)) +
  geom_histogram(color="black", fill="lightblue")+
  geom_vline(aes(xintercept=mean(trtbps)),
            color="blue", linetype="dashed", size=1)+
   scale_y_continuous(breaks = seq(0, 130, by = 10), limits = c(0, 130))+
  scale_x_continuous(n.breaks = 10)+
  labs(x="Resting blood pressure (in mm Hg)",y="count", title = "Resting blood pressure")+
  theme(axis.title = element_text(color="black",size=12),
        axis.text = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())

p10 <-ggplot(heart_disease_final, aes(x=chol)) +
  geom_histogram(color="black", fill="pink")+
  geom_vline(aes(xintercept=mean(chol)),
            color="blue", linetype="dashed", size=1)+
  scale_y_continuous(breaks = seq(0, 120, by = 10), limits = c(0, 120))+
  scale_x_continuous(n.breaks = 12)+
  labs(x="cholestoral in mg/dl",y="count", title = "cholestoral")+
  theme(axis.title = element_text(color="black",size=12),
        axis.text = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())

p11 <-ggplot(heart_disease_final, aes(x=thalach)) +
  geom_histogram(color="black", fill="lightgreen")+
  geom_vline(aes(xintercept=mean(thalach)),
            color="blue", linetype="dashed", size=1)+
  scale_y_continuous(breaks = seq(0, 80, by = 10), limits = c(0, 80))+
  scale_x_continuous(n.breaks = 12)+
  labs(x="Maximum heart rate achieved",y="count", title = "Maximum heart rate")+
  theme(axis.title = element_text(color="black",size=12),
        axis.text = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())

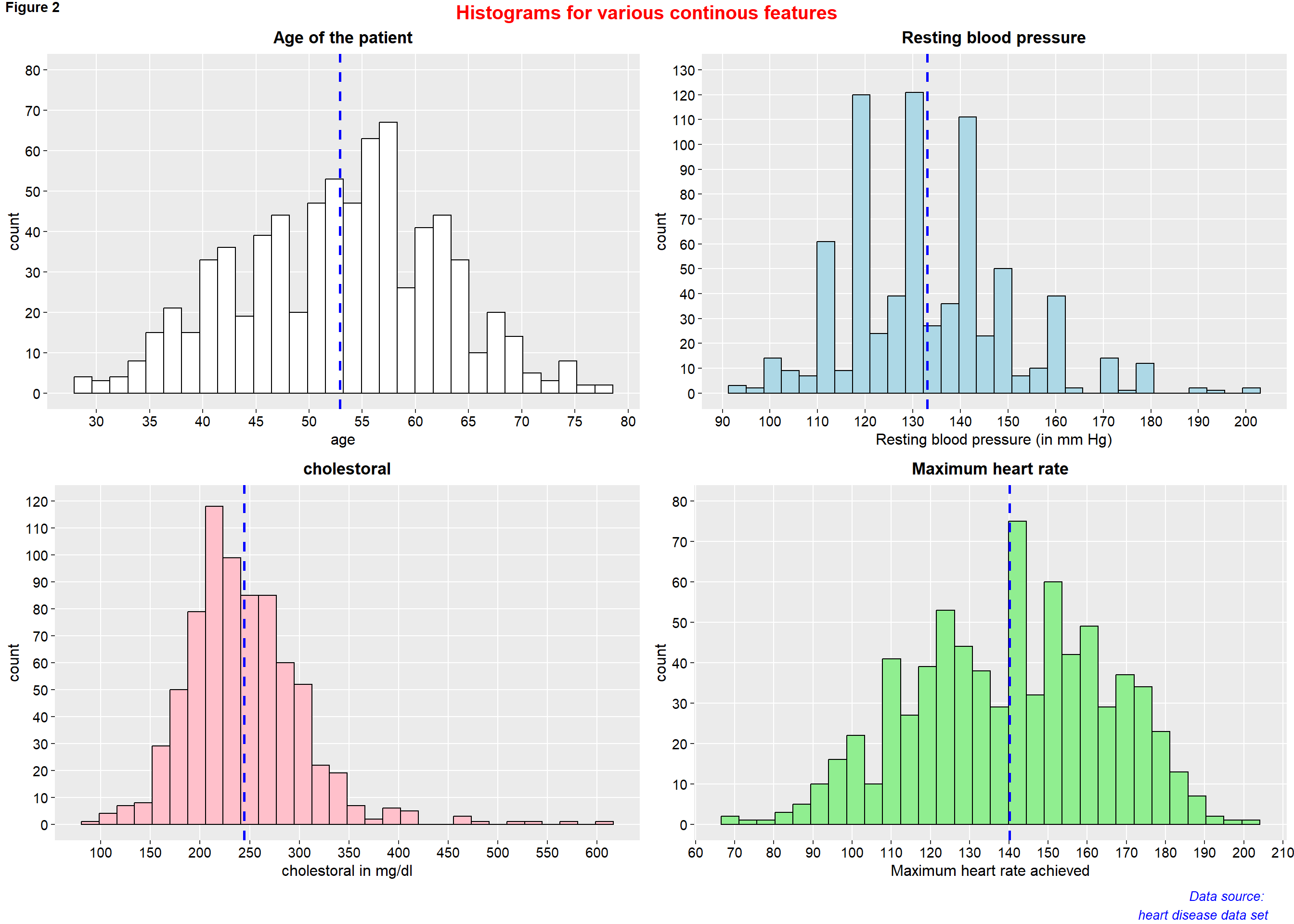

figure2 <- ggarrange(p8, p9, p10, p11,
          ncol = 2, nrow = 2)

annotate_figure(figure2,
                top = text_grob("Histograms for various continous features",
                                color = "red", face = "bold", size = 15),
                bottom = text_grob("Data source: \n heart disease data set", color = "blue",
                                   hjust = 1, x = 0.98, face = "italic", size = 10),
                #left = text_grob("Figure arranged using ggpubr", color = "green", rot = 90),
                #right = "",
                fig.lab = "Figure 2", fig.lab.face = "bold"
                )

3.2 Bivariate analysis

3.2.1 Difference Frequency table

# make dataset with variables to summarize


tbl_summary(heart_disease_final,
             by = output,
                      type = list(
                        all_dichotomous() ~ "categorical",
                         all_continuous() ~ "continuous2")
                      , statistic = all_continuous() ~ c(
                                     "{mean} ({sd})",
                                     "{median} ({p25}, {p75})",
                                     "{min}, {max}")
                      , digits = all_continuous() ~ 2
                      , missing = "always" # don't list missing data separately
                      ,missing_text = "Missing"
                      ) %>%
  modify_header(label = "**Variables**") %>% # update the column header
  bold_labels() %>%
  italicize_levels()%>%
  add_n()%>% # add column with total number of non-missing observations
  add_p(pvalue_fun = ~style_pvalue(.x, digits = 3),
        c(age, trtbps, chol, thalach, oldpeak) ~ "t.test",
        test.args = c(age, trtbps, chol, thalach, oldpeak) ~ list(var.equal = TRUE)) %>%
  bold_p(t= 0.05) %>% # bold p-values under a given threshold (default 0.05)
  #add_overall() %>%
  #add_difference() %>% #add column for difference between two group, confidence interval, and p-value
  modify_spanning_header(c("stat_1", "stat_2") ~ "**Heart Disease**")  %>%
  #modify_caption("**Table 1. Patient Characteristics**")%>%
  modify_footnote(
    all_stat_cols() ~ "Mean (SD); Median (IQR); Range; Frequency (%)"
  )
Variables N Heart Disease p-value2
No heart attack, N = 3901 Has Heart attack, N = 3561
Age of the patient 746 <0.001
    Mean (SD) 50.17 (9.31) 55.85 (8.82)
    Median (IQR) 51.00 (43.00, 56.00) 57.00 (50.00, 62.00)
    Range 28.00, 76.00 31.00, 77.00
    Missing 0 0
Sex of the patient 746 <0.001
    Female 142 (36.4%) 40 (11.2%)
    Male 248 (63.6%) 316 (88.8%)
    Missing 0 0
Chest pain type 746 <0.001
    typical angina 26 (6.67%) 15 (4.21%)
    atypical angina 145 (37.2%) 21 (5.90%)
    non-anginal 123 (31.5%) 46 (12.9%)
    asymptomatic 96 (24.6%) 274 (77.0%)
    Missing 0 0
Resting blood pressure (in mm Hg) 746 <0.001
    Mean (SD) 130.16 (16.14) 136.15 (17.96)
    Median (IQR) 130.00 (120.00, 140.00) 136.00 (123.75, 145.00)
    Range 94.00, 190.00 92.00, 200.00
    Missing 0 0
Cholestoral in mg/dl 746 0.005
    Mean (SD) 238.77 (55.39) 251.06 (62.46)
    Median (IQR) 231.50 (203.00, 269.00) 246.00 (212.00, 283.25)
    Range 85.00, 564.00 100.00, 603.00
    Missing 0 0
Fasting blood sugar 746 <0.001
    <= 120mg/dl 347 (89.0%) 274 (77.0%)
    >120mg/dl 43 (11.0%) 82 (23.0%)
    Missing 0 0
Resting electrocardiographic results 746 <0.001
    normal 257 (65.9%) 188 (52.8%)
    having ST_T abnormality 52 (13.3%) 73 (20.5%)
    showing probable or definate left ventricular hypertrophy 81 (20.8%) 95 (26.7%)
    Missing 0 0
Maximum heart rate achieved 746 <0.001
    Mean (SD) 149.06 (23.11) 130.55 (22.30)
    Median (IQR) 150.50 (135.00, 167.00) 130.00 (115.00, 147.00)
    Range 69.00, 202.00 71.00, 195.00
    Missing 0 0
Exercise induced angina 746 <0.001
    No 340 (87.2%) 119 (33.4%)
    Yes 50 (12.8%) 237 (66.6%)
    Missing 0 0
ST depression 746 <0.001
    Mean (SD) 0.39 (0.68) 1.46 (1.15)
    Median (IQR) 0.00 (0.00, 0.60) 1.50 (0.50, 2.00)
    Range -0.10, 4.20 0.00, 6.20
    Missing 0 0
Slope of peak exercise 746 <0.001
    upsloping 304 (77.9%) 45 (12.6%)
    flat 75 (19.2%) 279 (78.4%)
    downsloping 11 (2.82%) 32 (8.99%)
    Missing 0 0
1 Mean (SD); Median (IQR); Range; Frequency (%)
2 Two Sample t-test; Pearson's Chi-squared test

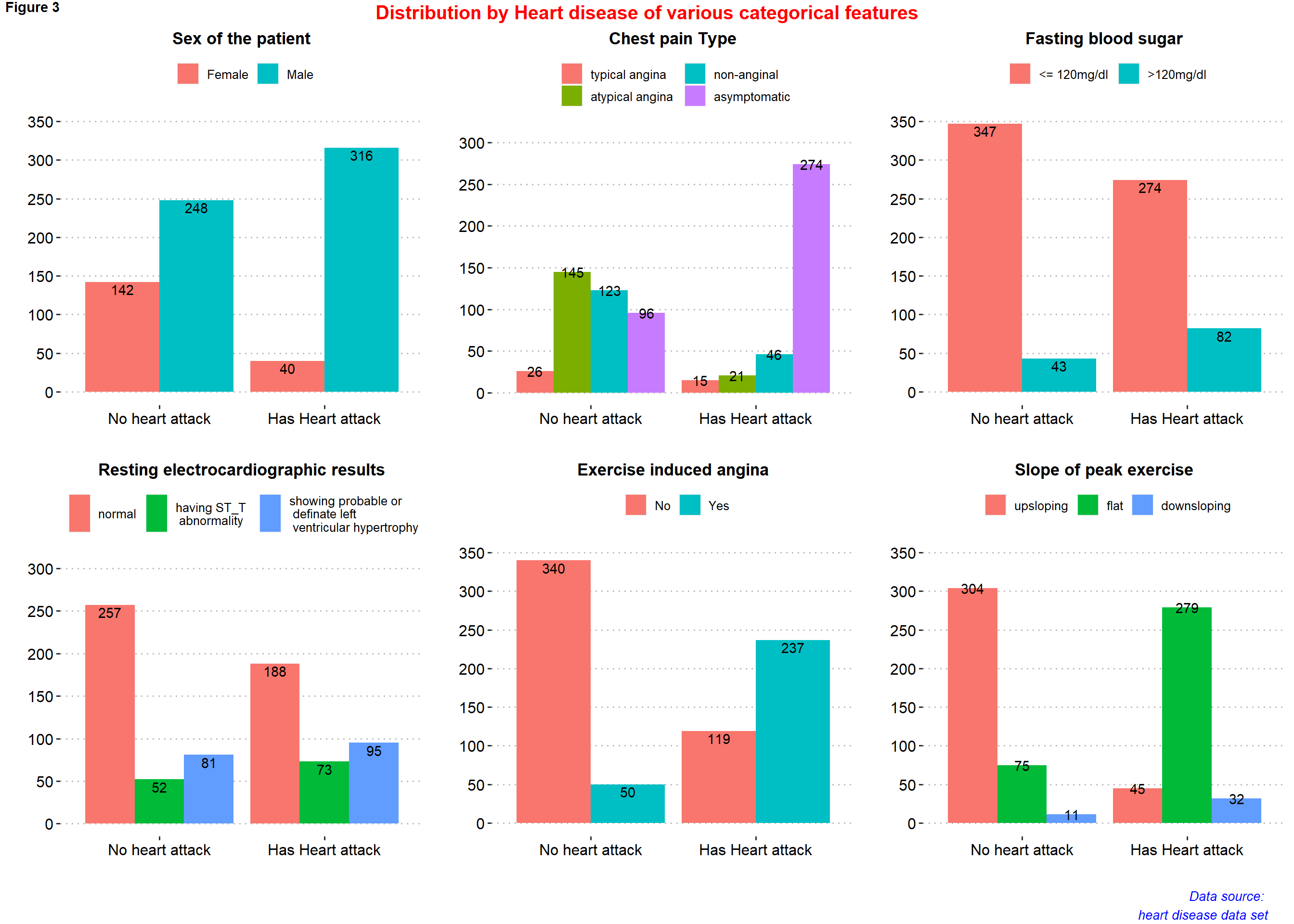

3.2.2 Visualization

p12 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = sex), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Sex of the patient", fill="")+
  scale_y_continuous(breaks = seq(0, 350, by = 50), limits = c(0, 350))+
  theme_pubclean()+
  geom_text(aes(fill=sex, label = ..count..), stat = "count", vjust = 1.2, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p13 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = cp), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Chest pain Type", fill="")+
  scale_y_continuous(breaks = seq(0, 300, by = 50), limits = c(0, 300))+
  theme_pubclean()+
  geom_text(aes(fill=cp, label = ..count..), stat = "count", vjust = 0.5, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text.y = element_text(color="black",size=12),
        axis.text.x = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())+
  guides(fill = guide_legend(nrow = 2))


p14 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = fbs), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Fasting blood sugar", fill="")+
  scale_y_continuous(breaks = seq(0, 350, by = 50), limits = c(0, 350))+
 theme_pubclean()+
  geom_text(aes(fill=fbs, label = ..count..), stat = "count", vjust = 1.2, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title= element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p15 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = restecg), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Resting electrocardiographic results", fill="")+
  scale_y_continuous(breaks = seq(0, 300, by = 50), limits = c(0, 300))+
  theme_pubclean()+
  geom_text(aes(fill=restecg, label = ..count..), stat = "count", vjust = 1.2, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text.y = element_text(color="black",size=12),
        axis.text.x = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

p16 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = exng), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Exercise induced angina", fill="")+
  scale_y_continuous(breaks = seq(0, 350, by = 50), limits = c(0, 350))+
  theme_pubclean()+
  geom_text(aes(fill=exng, label = ..count..), stat = "count", vjust = 1.2, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())


p17 <- ggplot(heart_disease_final, aes(x=output))+
  geom_bar(aes(fill = slp), show.legend = TRUE, position="dodge")+
  labs(x="",y="", title = "Slope of peak exercise", fill="")+
  scale_y_continuous(breaks = seq(0, 350, by = 50), limits = c(0, 350))+
  theme_pubclean()+
  geom_text(aes(fill=slp, label = ..count..), stat = "count", vjust = 0.5, colour = "black",
            position = position_dodge(.9))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        legend.position = "top",
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank())

figure3 <- ggarrange( p12, p13, p14, p15, p16, p17,
          ncol = 3, nrow = 2)

annotate_figure(figure3,
                top = text_grob("Distribution by Heart disease of various categorical features",
                                color = "red", face = "bold", size = 15),
                bottom = text_grob("Data source: \n heart disease data set", color = "blue",
                                   hjust = 1, x = 0.98, face = "italic", size = 10),
                #left = text_grob("Figure arranged using ggpubr", color = "green", rot = 90),
                #right = "",
                fig.lab = "Figure 3", fig.lab.face = "bold"
                )

p18 <- ggplot(heart_disease_final, aes(x=age, fill=output)) +
  geom_density(alpha=0.4)+
  scale_y_continuous(n.breaks = 10)+
  scale_x_continuous(breaks = seq(25, 80, by = 5), limits = c(25, 80))+
  labs(x="age",y="density", title = "Age of the patient")+
  theme(axis.title = element_text(color="black",size=12),
        legend.position = "top",
        axis.text = element_text(color="black",size=11),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())+
  guides(fill = guide_legend(title = ""))


p19 <-ggplot(heart_disease_final, aes(x=trtbps, fill=output)) +
  geom_density(alpha=0.4)+
  scale_y_continuous(n.breaks = 10)+
  scale_x_continuous(breaks = seq(90, 200, by = 10), limits = c(90, 200))+
  labs(x="Resting blood pressure (in mm Hg)",y="density", title = "Resting blood pressure")+
  theme(axis.title = element_text(color="black",size=12),
        legend.position = "top",
        axis.text.y = element_text(color="black",size=11),
        axis.text.x = element_text(color="black",size=9, angle = 90),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())+
  guides(fill = guide_legend(title = ""))


p20 <-ggplot(heart_disease_final, aes(x=chol, fill=output)) +
  geom_density(alpha=0.4)+
  scale_y_continuous(n.breaks = 10)+
  scale_x_continuous(breaks = seq(50, 650, by = 50), limits = c(50, 650))+
  labs(x="cholestoral in mg/dl",y="density", title = "cholestoral")+
  theme(axis.title = element_text(color="black",size=12),
        legend.position = "top",
        axis.text.y = element_text(color="black",size=11),
        axis.text.x = element_text(color="black",size=9, angle = 90),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())+
  guides(fill = guide_legend(title = ""))


p21 <-ggplot(heart_disease_final, aes(x=thalach, fill=output)) +
  geom_density(alpha=0.4)+
  scale_y_continuous(n.breaks = 10)+
  scale_x_continuous(breaks = seq(60, 210, by = 10), limits = c(60, 210))+
  labs(x="Maximum heart rate achieved",y="density", title = "Maximum heart rate")+
  theme(axis.title = element_text(color="black",size=12),
        legend.position = "top",
        axis.text.y = element_text(color="black",size=11),
        axis.text.x = element_text(color="black",size=9, angle=90),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.minor.y = element_blank(),
        panel.grid.minor.x = element_blank())+
  guides(fill = guide_legend(title = ""))


p22 <- ggplot(heart_disease_final, aes(output, age))+
  geom_boxplot(aes(colour = output), outlier.colour = "black",
               outlier.shape = 8, show.legend = FALSE)+
  labs(x="",y="age", title = "Age of the patient")+
  scale_y_continuous(breaks = seq(25, 80, by = 5), limits = c(25, 80))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.y = element_blank())


p23 <- ggplot(heart_disease_final, aes(output, trtbps))+
  geom_boxplot(aes(colour = output), outlier.colour = "black",
               outlier.shape = 1, show.legend = FALSE)+
  labs(x="",y="Resting blood pressure (mm Hg)", title = "Resting blood pressure")+
  scale_y_continuous(breaks = seq(90, 200, by = 10), limits = c(90, 200))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.y = element_blank())


p24 <-ggplot(heart_disease_final, aes(output, chol))+
  geom_boxplot(aes(colour = output), outlier.colour = "black",
               outlier.shape = 1, show.legend = FALSE)+
  labs(x="",y="cholestoral in mg/dl", title = "cholestoral")+
  scale_y_continuous(breaks = seq(50, 650, by = 50), limits = c(50, 650))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.y = element_blank())


p25 <-ggplot(heart_disease_final, aes(output, thalach))+
  geom_boxplot(aes(colour = output), outlier.colour = "black",
               outlier.shape = 1, show.legend = FALSE)+
  labs(x="",y="Maximum heart rate achieved", title = "Maximum heart rate")+
  scale_y_continuous(breaks = seq(60, 200, by = 10), limits = c(60, 200))+
  theme(axis.title = element_text(face="bold",color="black",size=13),
        axis.text = element_text(color="black",size=12),
        plot.title = element_text(hjust = 0.5, face="bold",color="black",size=13),
        panel.grid.major.x = element_blank(),
        panel.grid.minor.y = element_blank())

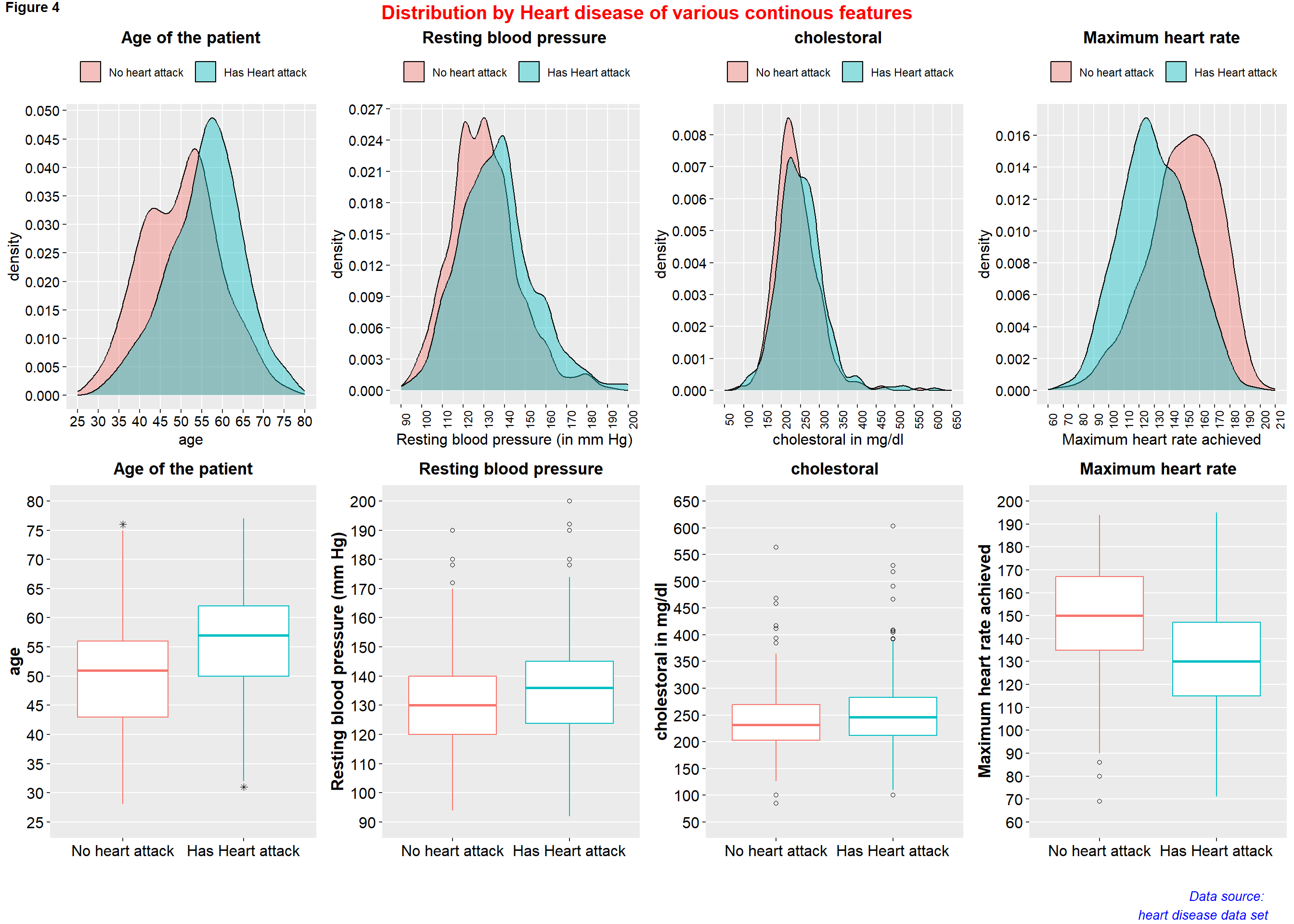

figure4 <- ggarrange( p18, p19, p20, p21, p22, p23, p24, p25,
          ncol = 4, nrow = 2)

annotate_figure(figure4,
                top = text_grob("Distribution by Heart disease of various continous features",
                                color = "red", face = "bold", size = 15),
                bottom = text_grob("Data source: \n heart disease data set", color = "blue",
                                   hjust = 1, x = 0.98, face = "italic", size = 10),
                #left = text_grob("Figure arranged using ggpubr", color = "green", rot = 90),
                #right = "",
                fig.lab = "Figure 4", fig.lab.face = "bold"
                )

3.2.3 Correlation

A negative correlation implies that the two variables under consideration vary in opposite directions, that is, if a variable increases the other decreases and vice versa. On the other hand, a positive correlation implies that the two variables under consideration vary in the same direction, i.e., if a variable increases the other one increases and if one decreases the other one decreases as well

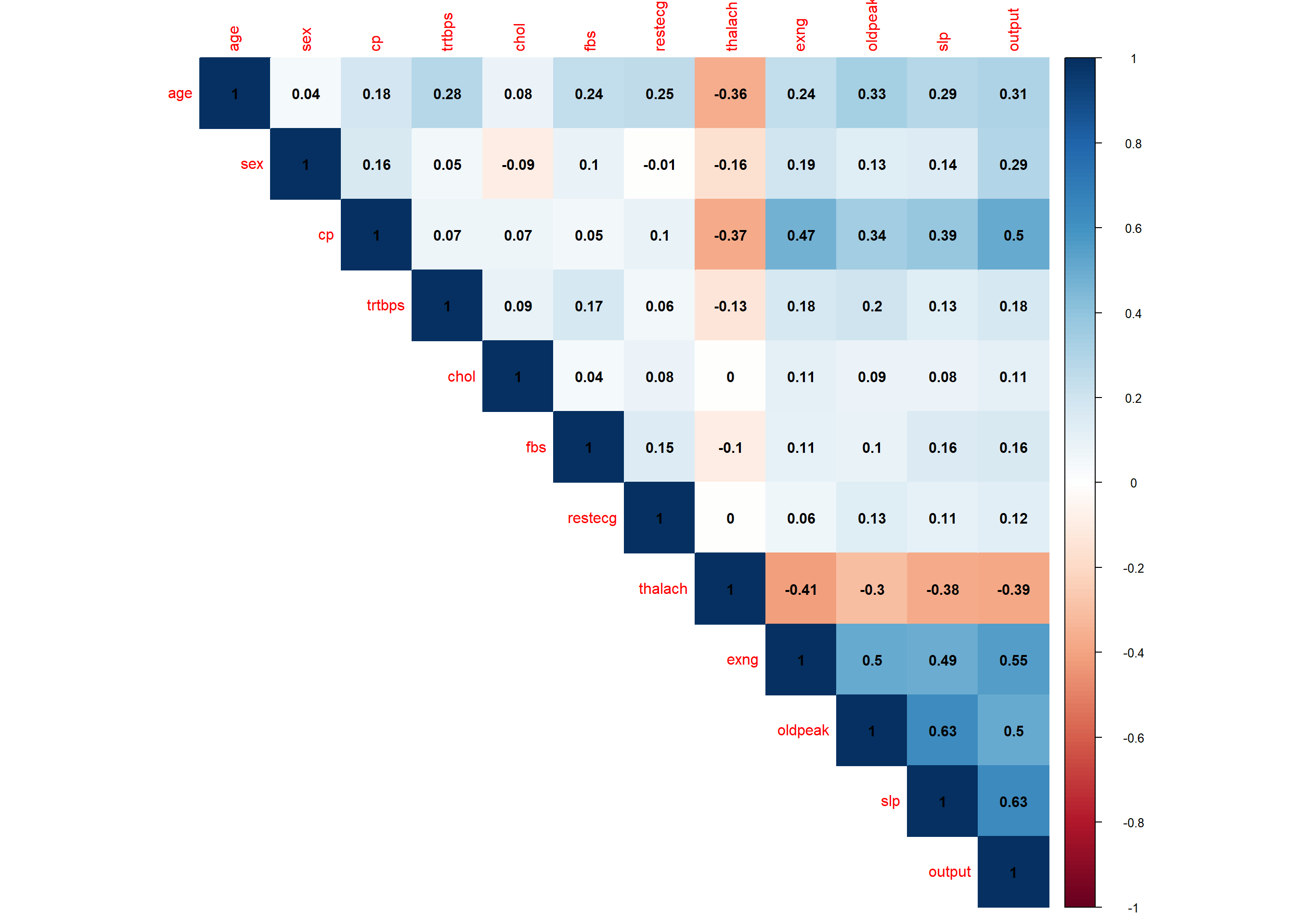

# improved correlation matrix
library(corrplot)

corrplot(cor(heart_disease_final%>%mutate(across(c(2,3,6, 7, 9, 11, 12), as.numeric)),
             method='spearman'),
  method = "color", #number
  addCoef.col = "black",
  number.cex = 0.95,
  type = "upper" # show only upper side #full
)

Only correlations with p-values smaller than the significance level (p<0.05)should be interpreted.

# correlation tests for whole dataset
library(Hmisc)
res <- rcorr(as.matrix(heart_disease_final%>%mutate(across(c(2,3,6, 7, 9, 11, 12), as.numeric)))) # rcorr() accepts matrices only

# display p-values (rounded to 3 decimals)
kable(
  round(res$P, 3)
)
age sex cp trtbps chol fbs restecg thalach exng oldpeak slp output
age NA 0.264 0.000 0.000 0.109 0.000 0.000 0.000 0.000 0.000 0.000 0.000
sex 0.264 NA 0.000 0.349 0.003 0.009 0.713 0.000 0.000 0.001 0.000 0.000
cp 0.000 0.000 NA 0.235 0.029 0.236 0.032 0.000 0.000 0.000 0.000 0.000
trtbps 0.000 0.349 0.235 NA 0.009 0.000 0.090 0.001 0.000 0.000 0.000 0.000
chol 0.109 0.003 0.029 0.009 NA 0.141 0.064 0.588 0.018 0.110 0.032 0.005
fbs 0.000 0.009 0.236 0.000 0.141 NA 0.000 0.005 0.003 0.129 0.000 0.000
restecg 0.000 0.713 0.032 0.090 0.064 0.000 NA 0.488 0.194 0.001 0.003 0.002
thalach 0.000 0.000 0.000 0.001 0.588 0.005 0.488 NA 0.000 0.000 0.000 0.000
exng 0.000 0.000 0.000 0.000 0.018 0.003 0.194 0.000 NA 0.000 0.000 0.000
oldpeak 0.000 0.001 0.000 0.000 0.110 0.129 0.001 0.000 0.000 NA 0.000 0.000
slp 0.000 0.000 0.000 0.000 0.032 0.000 0.003 0.000 0.000 0.000 NA 0.000
output 0.000 0.000 0.000 0.000 0.005 0.000 0.002 0.000 0.000 0.000 0.000 NA

After exploring the data, a statistical model will be used to give the final conclusion of the relationship. The dependent variable, “output” is categorical with two variables while the independent variables are more than one and are a mixture of categorical and continuous data and hence a binary logistic model will be applied. This model will be trained and tested and used to make some predictions.

4 Logistic Regression

4.1 Splitting the data for training and testing

spliting the data in a 80:20 ratio (training:testing). We use set.seed() to make sure that the results are repeatable. We also use the outcome variable, output to stratify. This is to ensure that the distribution of the outcome is comparable in both data sets.

library(rsample)

set.seed(123)
split <- initial_split(heart_disease_final, prop = 0.8, strata = output)


train <- training(split)
test <- testing(split)

#initial_time_split() takes the 1st prop samples for training,instead of random selection.

#sample=sample.split(mydata, SplitRatio = 0.80)
#train<-subset(mydata, sample==TRUE)
#test<-subset(mydata, sample==FALSE)

4.2 model

glm_logistic_reg <-glm(formula=output~.,data=train, family="binomial")


#summary(glm_logistic_reg)

4.3 model statistics

broom::glance(glm_logistic_reg)
## # A tibble: 1 x 8
##   null.deviance df.null logLik   AIC   BIC deviance df.residual  nobs
##           <dbl>   <int>  <dbl> <dbl> <dbl>    <dbl>       <int> <int>
## 1          828.     597  -198.  429.  499.     397.         582   598
#performance::check_collinearity(glm_logistic_reg)

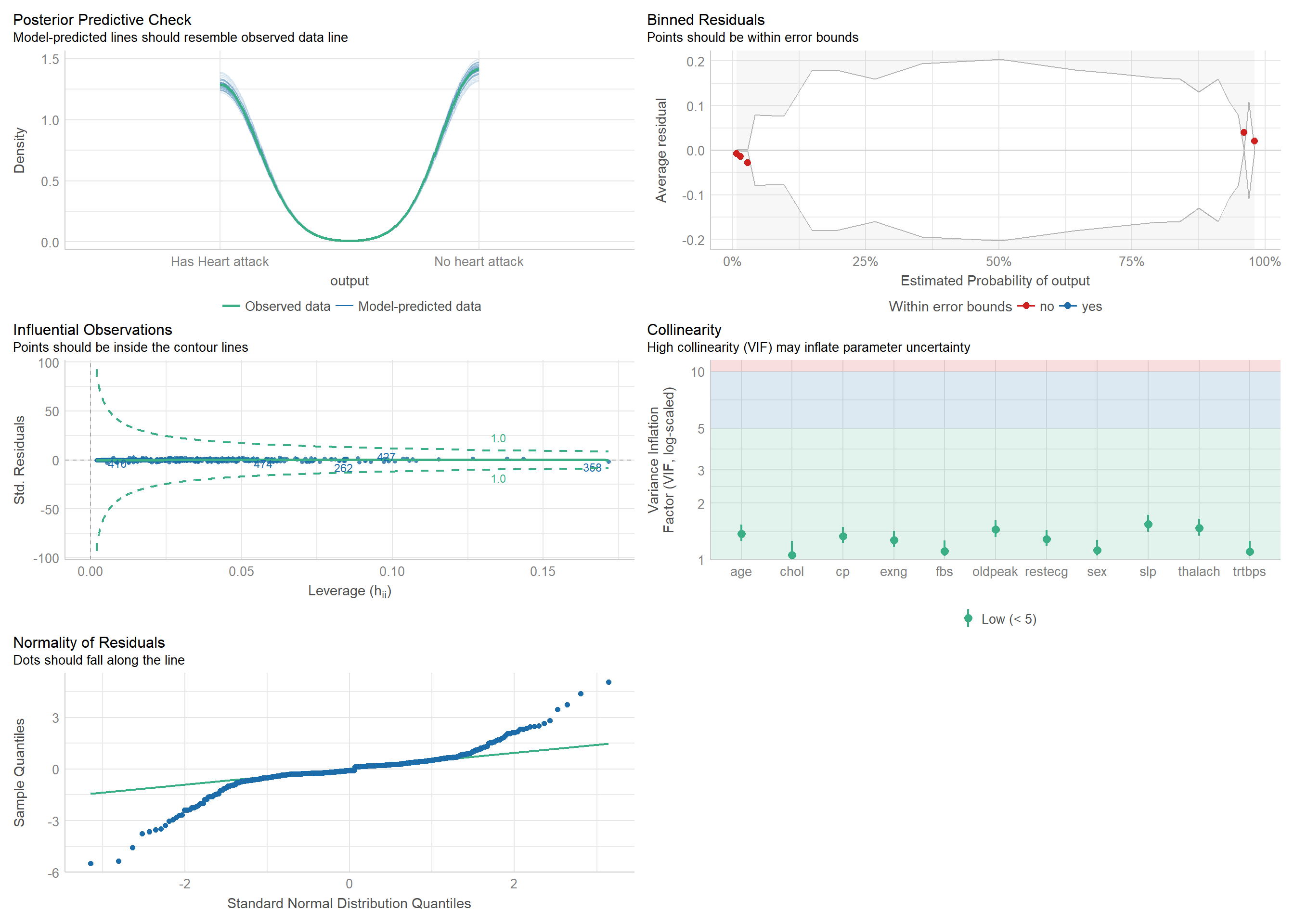

performance::check_model(glm_logistic_reg)

#performance::performance_accuracy(glm_logistic_reg)

#plot(performance::performance_roc(glm_logistic_reg))

4.4 model results

tbl_regression(glm_logistic_reg, exponentiate = TRUE,
    pvalue_fun = ~style_pvalue(.x, digits = 3)
  )%>%
  #add_global_p()%>% # add global p-value for categorical variables
  bold_p(t= 0.05) %>% # bold p-values under a given threshold (default 0.05)
  bold_labels() %>%
  italicize_levels()%>%
  modify_header(label = "**Logistic regression**")%>% # update the column header
  add_significance_stars(
    pattern = "{estimate} ({conf.low}-{conf.high}){stars}",
    hide_ci = TRUE, hide_se = TRUE , hide_p = FALSE) %>%
  modify_header(estimate ~ "**AOR (95% CI)**") %>%
  modify_footnote(estimate ~ "AOR = Adjusted Odds Ratio, CI = Confidence Interval", abbreviation = TRUE)
Logistic regression AOR (95% CI)1,2 p-value
Age of the patient 1.03 (1.00-1.06) 0.069
Sex of the patient
    Female —
    Male 5.08 (2.62-10.2)*** <0.001
Chest pain type
    typical angina —
    atypical angina 0.76 (0.23-2.48) 0.641
    non-anginal 0.87 (0.30-2.56) 0.801
    asymptomatic 3.88 (1.40-11.3)* 0.010
Resting blood pressure (in mm Hg) 1.01 (0.99-1.03) 0.266
Cholestoral in mg/dl 1.00 (1.00-1.01) 0.098
Fasting blood sugar
    <= 120mg/dl —
    >120mg/dl 1.52 (0.75-3.12) 0.251
Resting electrocardiographic results
    normal —
    having ST_T abnormality 0.95 (0.45-2.02) 0.885
    showing probable or definate left ventricular hypertrophy 1.24 (0.65-2.36) 0.510
Maximum heart rate achieved 1.00 (0.99-1.01) 0.936
Exercise induced angina
    No —
    Yes 2.43 (1.33-4.42)** 0.004
ST depression 1.50 (1.11-2.06)** 0.010
Slope of peak exercise
    upsloping —
    flat 10.9 (6.10-20.2)*** <0.001
    downsloping 3.76 (1.17-12.4)* 0.027
1 *p<0.05; **p<0.01; ***p<0.001
2 AOR = Adjusted Odds Ratio, CI = Confidence Interval

Statistically significant variables are Male(Sex), Asymptomatic (chest pain type), Yes (Angina), ST depression, flat (slope of peak exercise) and downsloping (slope of peak exercise).

Having Asymptomatic chest pain type, Angina, flat slope of peak exercise, downsloping slope of peak exercise, high ST depression and being Male are significantly associated with higher odds of having a heart attack. e.g People with Angina are 2.43 times more likely to get heart attack than those with no Angina. Males are 5.08 times more likely to get heart attack than females.

atypical angina chest pain type, non-anginal chest pain type, having ST_T abnormality sesting electrocardiographic results are associated with lower odds of heart attack. However they do not have a significant effect on heart attack.

5 Evaluating our Model

5.1 Fitting with testing data

test$prediction <-predict(glm_logistic_reg, test, type= "response")

##replacing probabilities with dummies

test$predicted <- as.factor(ifelse(test$prediction<0.5, "No heart attack", "Has Heart attack"))

test <- test%>%
  mutate(predicted= factor(predicted, levels = c("No heart attack", "Has Heart attack")))

test1 <- test%>%
  mutate(across(c(predicted, output), fct_rev))

##creating a confusion matrix

table(Predicted=test1$predicted, Actual=test1$output)
##                   Actual
## Predicted          Has Heart attack No heart attack
##   Has Heart attack               68              14
##   No heart attack                 3              63
##getting percentage of misclassification

1-sum(diag(table(Predicted=test1$predicted, Actual=test1$output)))/sum(table(Predicted=test1$predicted, Actual=test1$output))
## [1] 0.1148649
##getting percentage of accuracy
sum(diag(table(Predicted=test1$predicted, Actual=test1$output)))/sum(table(Predicted=test1$predicted, Actual=test1$output))
## [1] 0.8851351
##Testing for goodness of fit.

with(glm_logistic_reg, pchisq(null.deviance - deviance, df.null - df.residual, lower.tail = FALSE))
## [1] 2.407305e-82

5.2 Confussion matrix

library(caret)
confusionMatrix(test1$predicted, test1$output)
## Confusion Matrix and Statistics
##
##                   Reference
## Prediction         Has Heart attack No heart attack
##   Has Heart attack               68              14
##   No heart attack                 3              63
##
##                Accuracy : 0.8851
##                  95% CI : (0.8225, 0.9316)
##     No Information Rate : 0.5203
##     P-Value [Acc > NIR] : < 2e-16
##
##                   Kappa : 0.7713
##
##  Mcnemar's Test P-Value : 0.01529
##
##             Sensitivity : 0.9577
##             Specificity : 0.8182
##          Pos Pred Value : 0.8293
##          Neg Pred Value : 0.9545
##              Prevalence : 0.4797
##          Detection Rate : 0.4595
##    Detection Prevalence : 0.5541
##       Balanced Accuracy : 0.8880
##
##        'Positive' Class : Has Heart attack
##

  • True positives (TP) we have 68 correctly classified instances of heart attack

  • True negatives(TN) we have 63 cases classified as not having heart attack

  • False negatives (FN) we have 3 cases our model said the patient didn’t have heart attack and they actually did

  • False positives (FP) we have 14 cases our model said a patient did have heart attack, but they actually didn’t

  • Sensitivity (Recall) The true positive rate is 0.9577 meaning from all the patients that had heart attack ; how many did we predict correctly - this equation is Sensitivity =TP / (TP + FN)

  • Specificity The true negative rate is 0.8182 meaning from all the patients that didn’t have heart attack - how many did we predict correctly - this equation is Specificity =TN / (TN + FP)

  • Positive Predictive Value (Precision) is 0.8293 meaning from all the classes we predicted as positive, how many were actually positive. equation is Positive Predictive Value=TP/(TP + FP)

  • Negative Predictive Value is 0.9545 meaning from all the classes we predicted as negative, how many were actually negative. equation is Negative Predictive Value=TN/(TN + FN)

  • Accuracy of the model is 88.5% with p value of 2.407305e-82 (less than the default level of significance (0.05)).

5.3 ROC curve

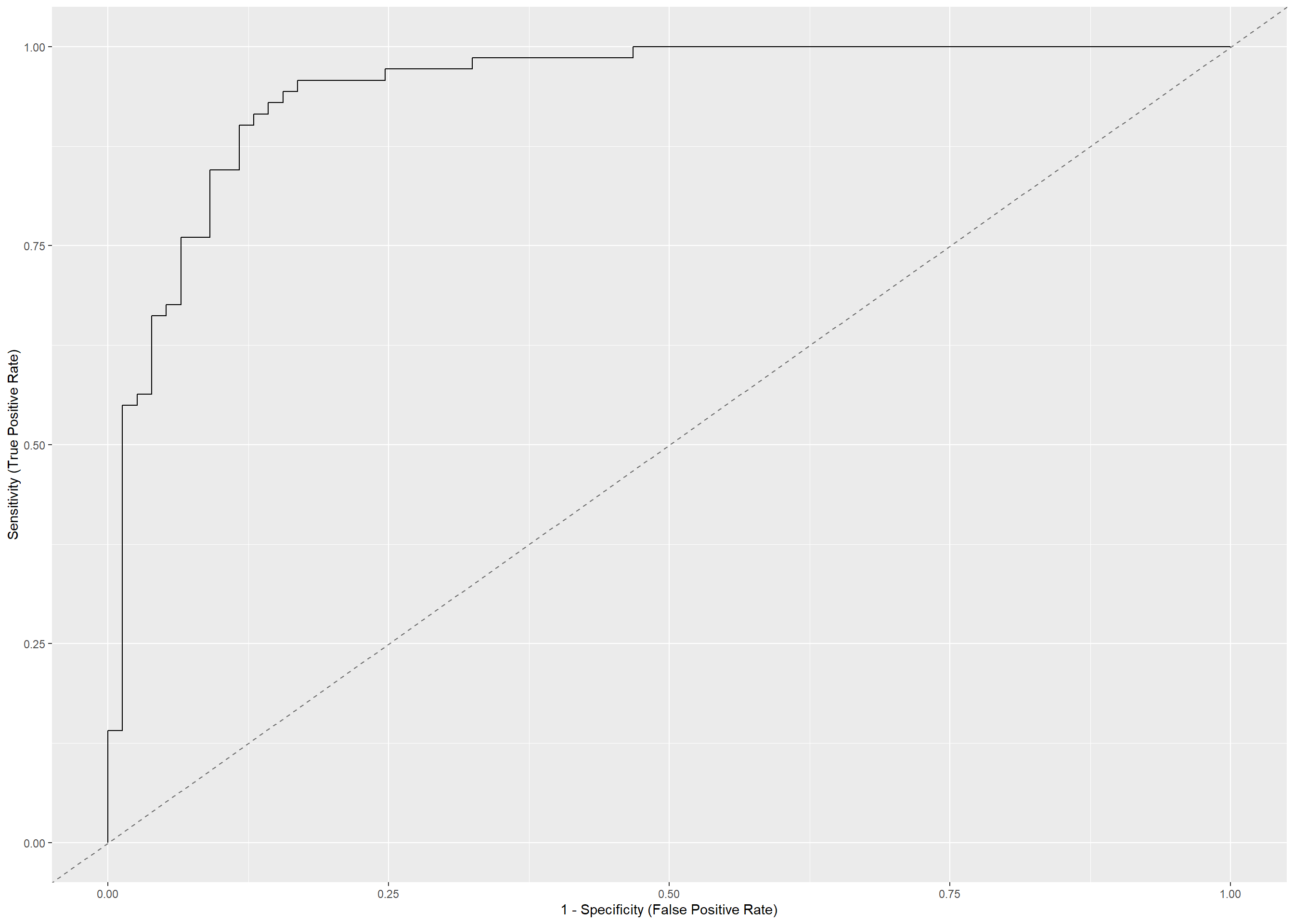

plot(performance::performance_roc(glm_logistic_reg, new_data = test))

  • Our model did relatively well and can be used in making predictions
